Design for manufacture · undercuts and inserts
Undercuts, internal features and inserts, worked out before tooling.
Flexible moulds let us release undercuts that rigid tools can't. Steel tools need cores, side actions or a redesign. The review works out which your part needs, and whether a small change makes it simpler.
The detail
DFM: undercuts and inserts, at group level.

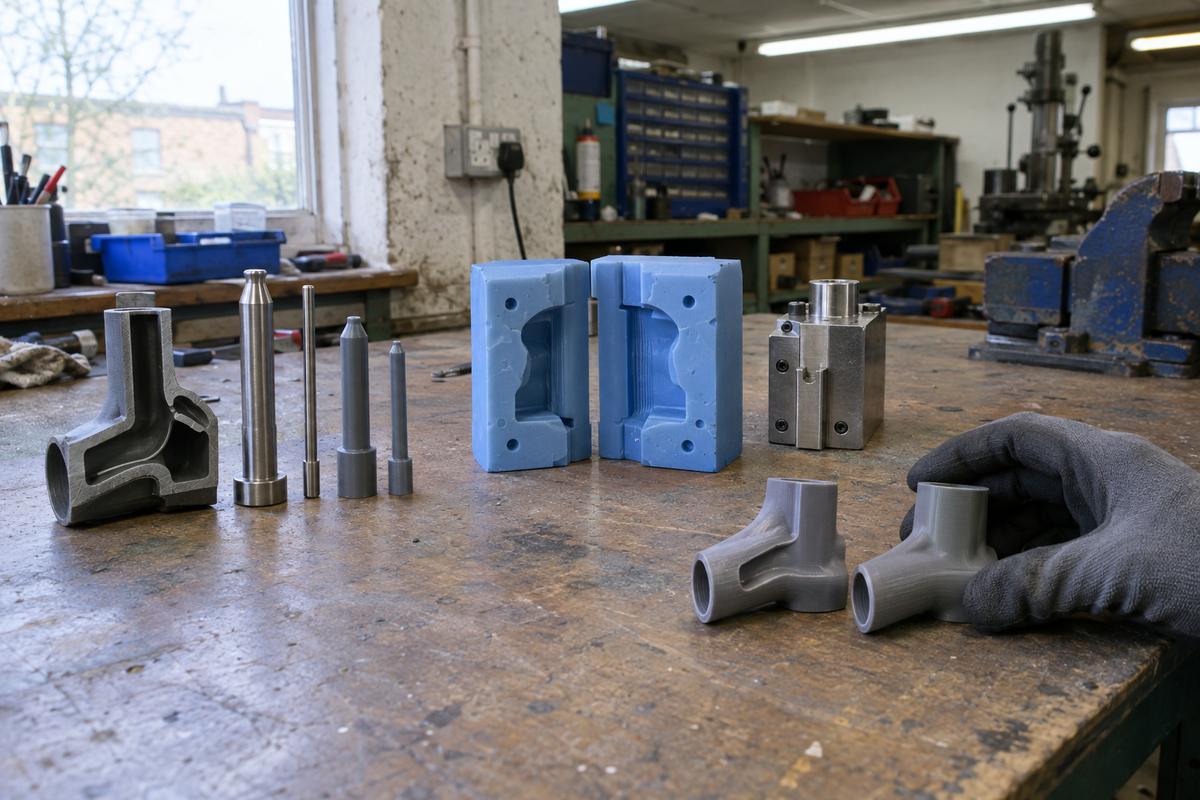

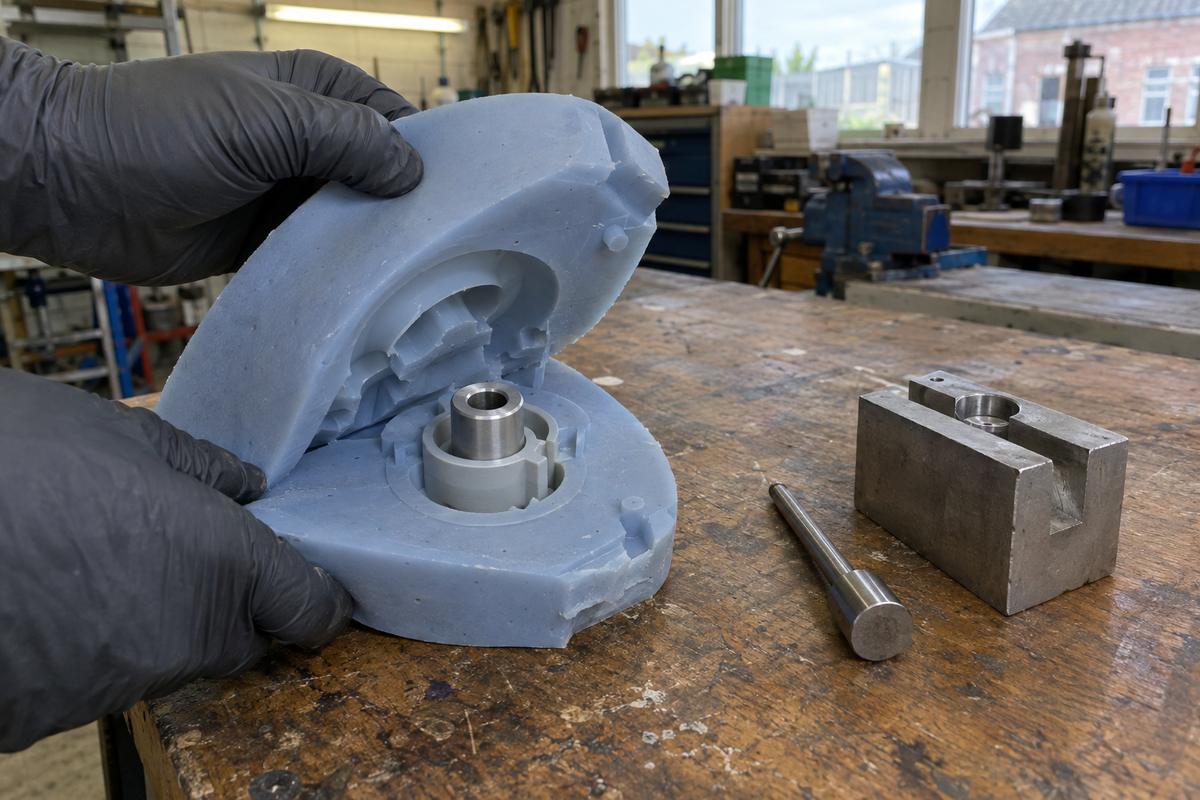

Undercuts are where silicone tooling earns its keep. A hand-made or cast silicone mould can peel off shapes a steel tool would lock onto. But once volume pushes the job to compression or injection, the same undercut needs a mechanism — and mechanisms add cost and risk.
We review undercuts and inserts together because they often interact. An insert that sits across a parting line, or an undercut that traps an insert, is worth catching on paper.
Back to Design for manufacture, across five moulding routes.
What's involved
Six parts of the work.
Flexible release
Which undercuts a silicone tool can peel off without damage.
Cores and side actions
What a rigid tool would need, and what it adds.
Design-out options
Small changes that remove an undercut without changing function.
Insert placement
Inserts located so they're held and don't cross parting lines.
Internal passages
Bores, channels and hollows, with core removal planned.
Route impact
Where an undercut decides the route, we tell you plainly.
How it runs
Four steps, in order.
- 01
Feature review
Undercuts and inserts identified on the model.
- 02
Options
Tool mechanism or design change, compared.
- 03
Agree
You choose which changes to accept.
- 04
Design frozen
Tool built to the agreed version.
Is it right for you?
An honest fit check.
A good fit when
- Your part has hooks, lips, threads or re-entrant features
- You need metal or plastic inserts in a moulded part
- A quote came back high because of tool mechanisms
- You're moving a flexible-tool part onto a rigid tool
Probably not the answer when
- Hand-made one-offs where the silicone tool handles undercuts already
- Designs that can't change and already have a proven tool
- Non-elastomer parts
At a glance
The idea in a picture.
One enquiry, the right team
- 01One enquiryTell us what you need
- 02Right divisionWe bring in the specialists
- 03One quoteCovering every part of the job
- 04Named contactOne person keeps it moving
- 05DeliveredMoulds, parts or both
Swipe to see the whole diagram
FAQs
Common questions.
Can silicone moulds handle any undercut?
Many, not all. Deep or closed undercuts can tear a tool. We'll say which are safe.
Do side actions add much?
They add tool complexity. We'll show you the difference on the quote.
Can you mould in my inserts?
Yes — see our silicone and metal insert service.
