Design for manufacture · multi-cavity layout
How many cavities, and how to make them all fill the same.
More cavities per shot lowers unit cost — if every cavity fills, cures and releases the same. The layout review sets cavity count, feeding and venting so part one and part sixteen match.
The detail
DFM: multi cavity layout, at group level.
Cavity count is a commercial decision disguised as an engineering one. Too few and your unit cost stays high. Too many and the tool costs more, balances worse and produces more rejects. The right number depends on your volume, your part and the route.
This review is most often run for compression and LSR tools in TCI Products, and for multi-cavity food trays in TCI Culinary.
Back to Design for manufacture, across five moulding routes.
What's involved
Six parts of the work.
Cavity count
Set against your forecast, not the biggest tool that fits the press.

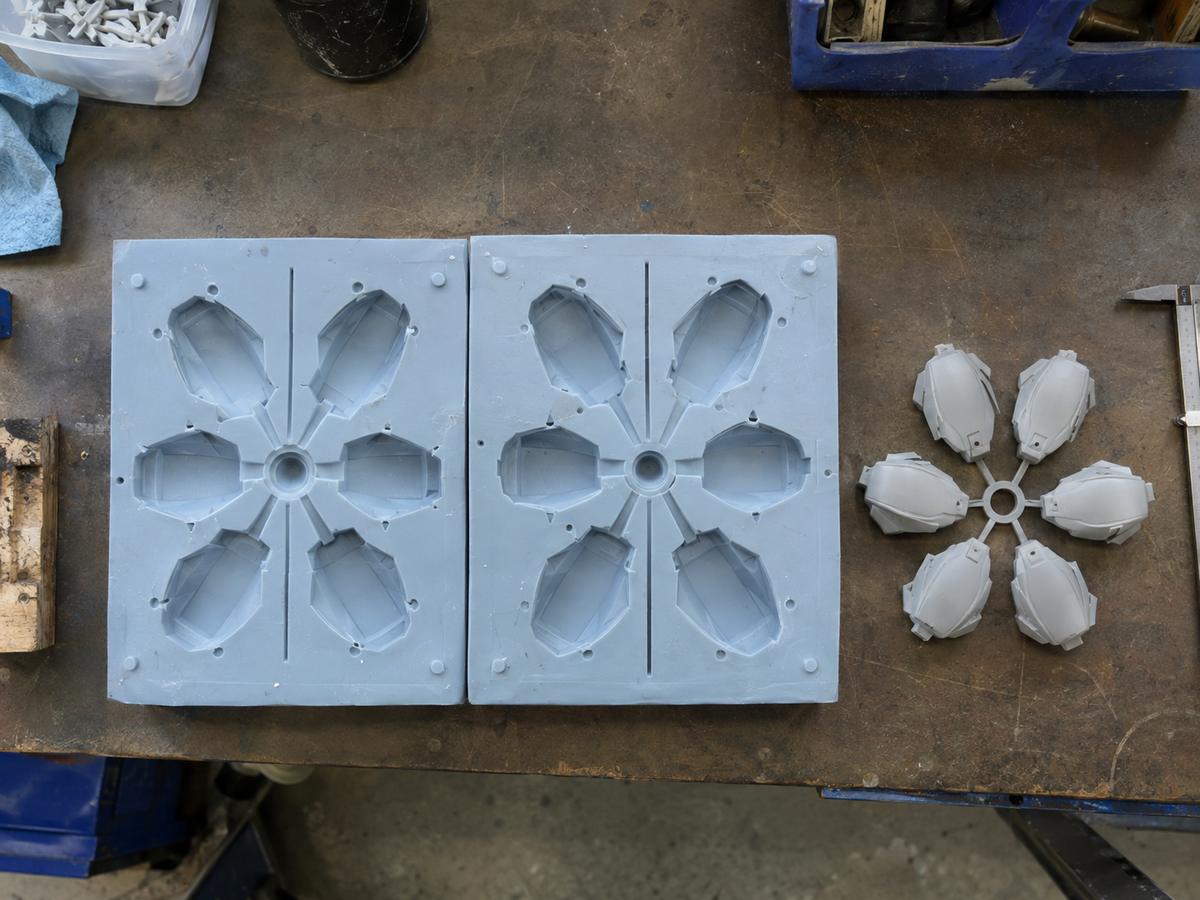

Feed and balance
Every cavity filled evenly so parts match across the tool.

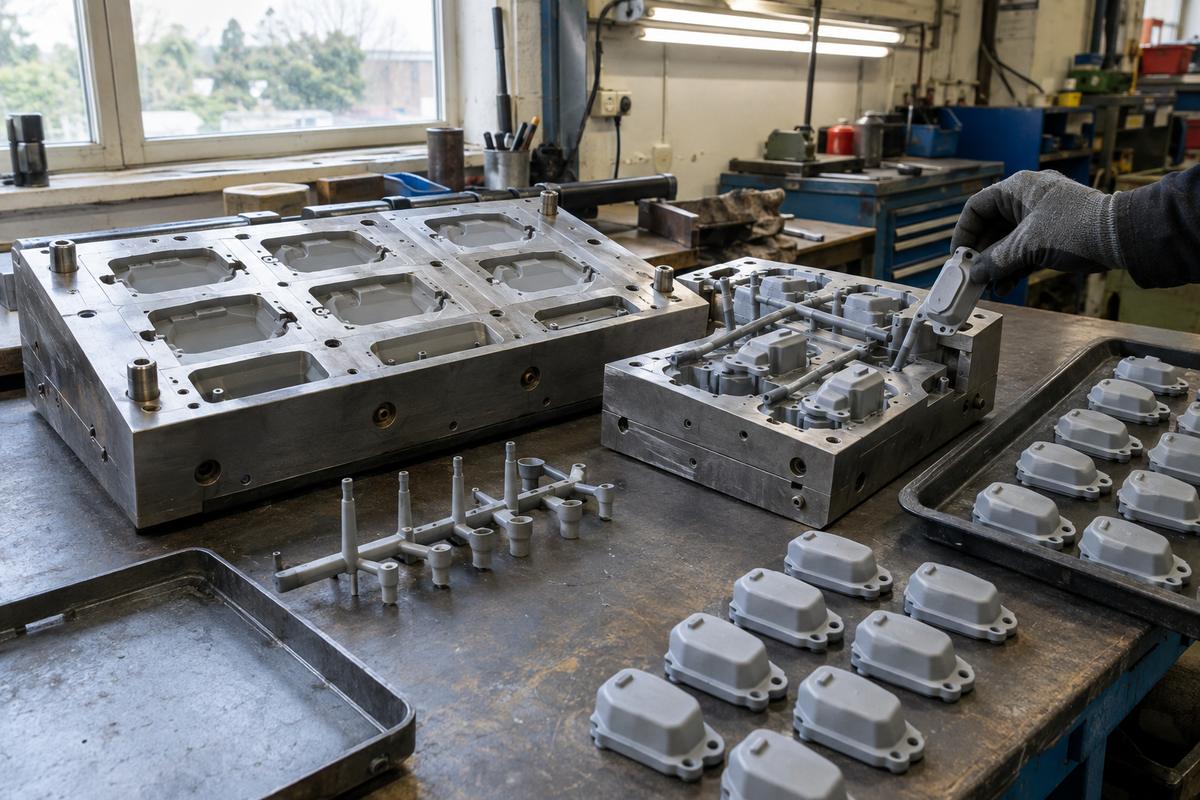

Venting
Air let out where it would otherwise trap and leave voids.
Cavity identification
Cavity numbers moulded in so a problem can be traced to its cavity.
Demould and handling
Layout that lets parts come out cleanly and quickly.
Future expansion
Tools designed so cavities can be added later if volume grows.
How it runs
Four steps, in order.
- 01
Forecast
Annual volume and batch sizes agreed.
- 02
Layout options
Two cavity counts compared on tool and unit cost.
- 03
Balance review
Feeding and venting designed for the chosen layout.
- 04
Sign-off
Layout frozen before steel is cut.
Is it right for you?
An honest fit check.
A good fit when
- You're commissioning a compression or LSR tool
- Parts from different cavities don't match today
- Your unit cost needs to come down at volume
- You're planning a multi-cavity food or bakery tray
Probably not the answer when
- Low volumes where a single cavity is plenty
- Hand-poured tools where fill isn't pressure-driven
- Parts too large for more than one per shot
At a glance
The ideas in pictures.
Which route suits your quantity
Swipe to see the whole diagram
One enquiry, the right team
- 01One enquiryTell us what you need
- 02Right divisionWe bring in the specialists
- 03One quoteCovering every part of the job
- 04Named contactOne person keeps it moving
- 05DeliveredMoulds, parts or both
Swipe to see the whole diagram
FAQs
Common questions.
Is more cavities always cheaper?
Per part, usually. Overall, not always — the tool costs more and balance gets harder.
Can cavities be added later?
If the tool is designed for it. We'll plan for that when growth is likely.
Which division runs these tools?
Mostly TCI Products; multi-cavity food trays go through TCI Culinary.
